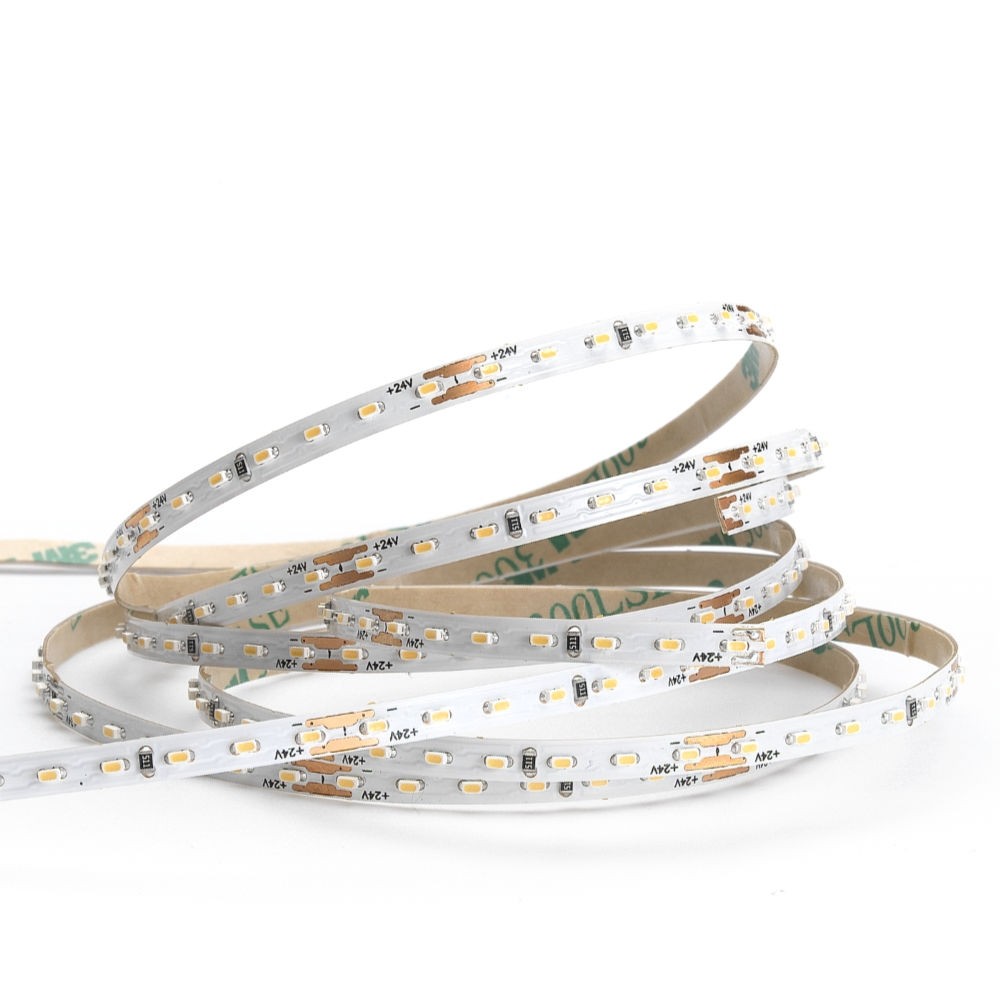

HL-LED STRIP 6 ULTRA SLIM

Name: HL-LED STRIP 6 ULTRA SLIM
SKU: LS3006
Availability: InStock

Κωδικός : #LS3006

Σειρά ταινιών HL-LED με υψηλή πυκνότητα LED ανά μέτρο (LED / m) με βάση πρωτοποριακούς τύπους LED SMD2110. Χάρη στη βελτιστοποιημένη συγκόλληση, η πλακέτα διπλού χαλκού PCB εγγυάται υψηλότερη αντίσταση στη μηχανική καταπόνηση έως και 27 Newton αντί για 5/7 Newton για τις τυπικές ταινίες LED. Αυτό επιτρέπει τη δυνατότητα περιστροφής ή κάμψης της ταινίας HL-LED χωρίς να καταστρέφετε .

ΕΠΙΚΟΙΝΩΝΗΣΤΕ ΜΑΖΙ ΜΑΣ

Light colour :
4000K , 2700K , 6000K , 3000K
Colour rendering (CRI) :
95
Light flux :
894 lm/m (-RWW), 900 lm/m (-WW), 907 lm/m (-NW), 924 lm/m (-W)
IP classification :
20
LED pcs :
168pcs/m
Input Voltage :
24v DC

HL-LED strip series with high LED density per meter (LED/m) based on an innovative LED types SMD2110. Thanks to the optimized soldering and the double copper PCB board guarantee an higher resistance to mechanical stress up to 27 Newton instead of 5/7 Newton for the standard LED strips, this allow the possibility to twist or bend the HL-LED strip without damaging it.

Parameter	Value
Symbol	LS3006
Led Type	LED types SMD2110
Power [W]	24
Voltage [V]	24

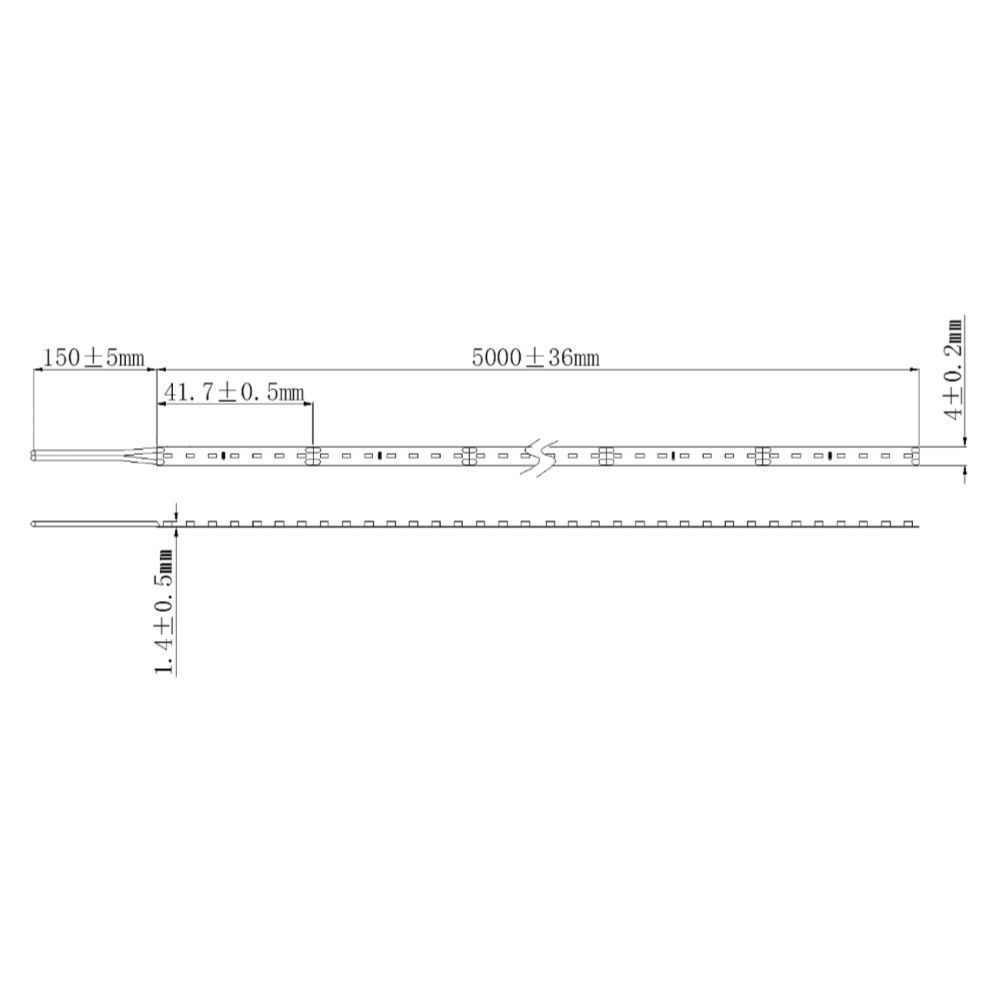

cutting length [mm]	41
Colour of light	White
Model	Tape
Number of nodes per meter	168
Voltage type	DC
Beam angle [°]	120
Color rendering index CRI	>95
With Self-adhesive	tak
Colour temperature [K]	2700-3000-4000-6000
Degree of protection	IP20
Luminous flux [lm]	900
Rated life time at 25 °C [h]	36000 h (L80B20)
Width [mm]	4
Height/depth [mm]	1.4
Energy efficiency class of the built-in lamp	A++, A+, A (LED)

A wide range of power supplies with different sizes and regulators is available, such as: button or rotation dimmers, 0-10V dimmers, DALI dimmers and DMX dimmers. Our aluminum profiles complete with covers, opals, semi-opals and transparent are indispensable for laying.

Maximum continuous connection: 5m
Strip with 3M double-sided adhesive included
