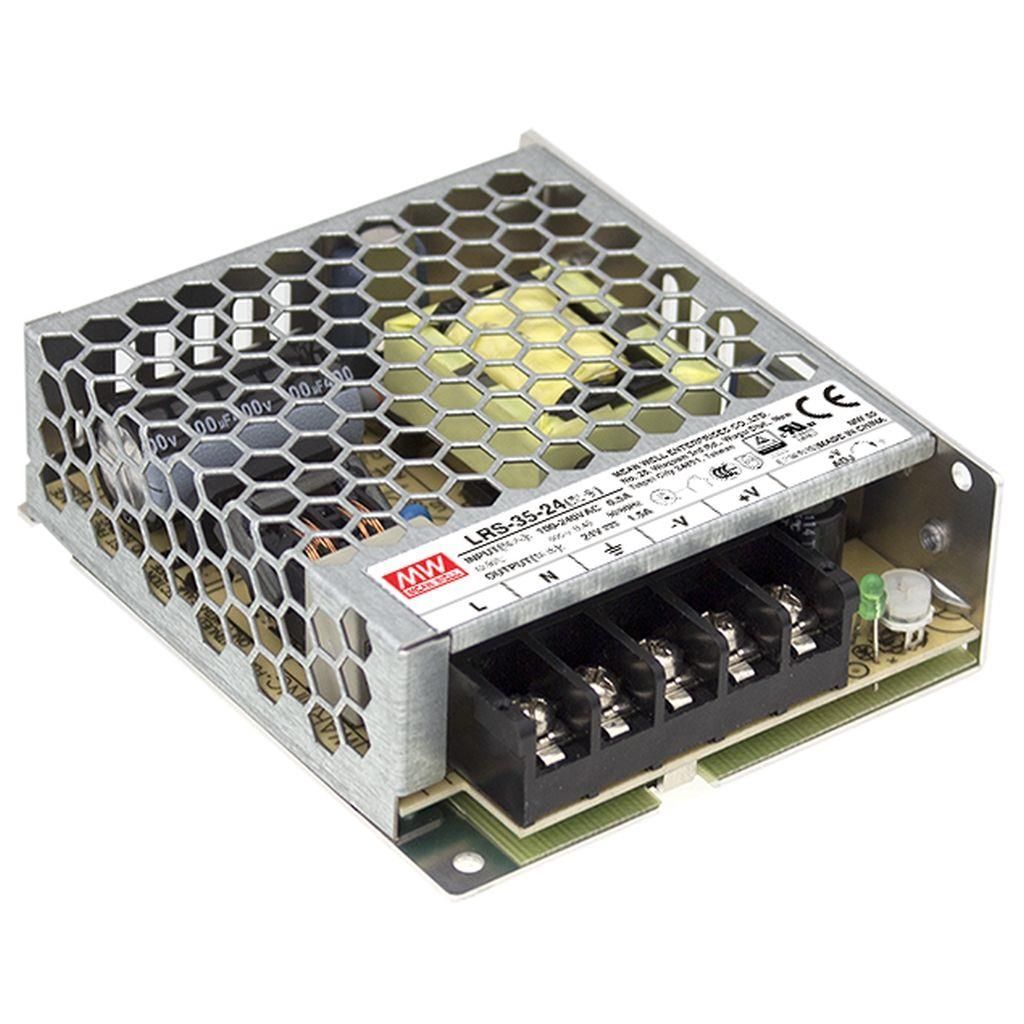

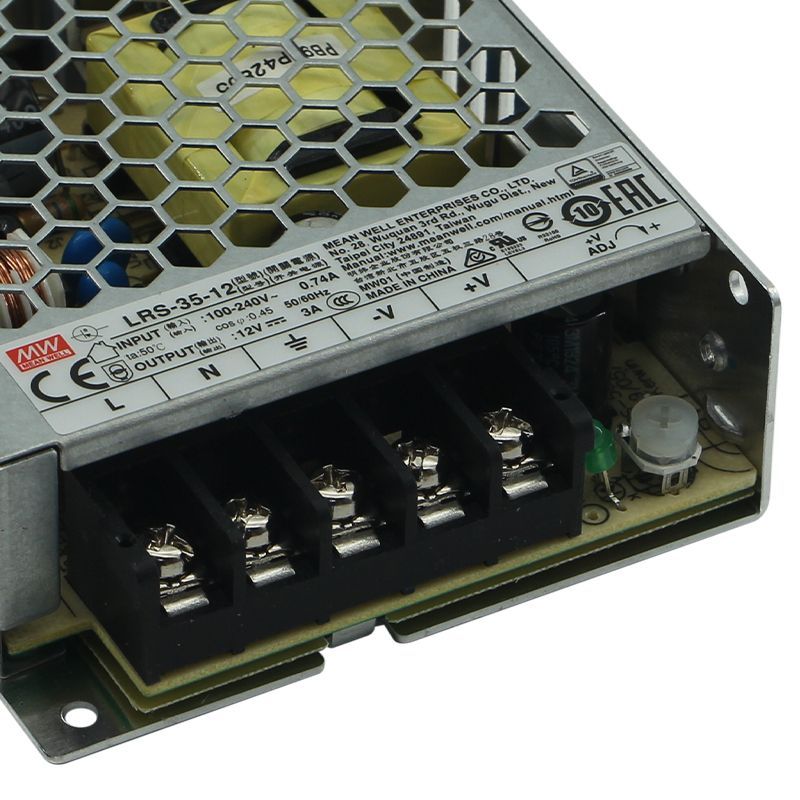

MEANWELL DRIVER 35W CV
Κωδικός : #LRS-35
Tροφοδοτικό switching, είσοδο 85-264VAC προστασία από βραχυκύκλωμα/υπερφόρτωση/υπέρταση ρύθμιση εξόδου ± 10% 3 χρόνια εγγύηση
- Dimensions :
- Width (mm) 82 Height (mm) 30 Depth (mm) 99
- Input Voltage :
- 85 - 264V
- Output Power (W) :
- 35
- Output Voltage (V) :
- 12 , 24
- Output Current (A) :
- 12V 3A (36W) | 24V 1.5A (36W)
Features:
- Meanwell DC 24V Power Supply
- Universal AC input / Full range
- Withstand 300vac surge input for 5 second
- No Load power consumption<0.2W
- Miniature size and 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Compliance to IEC/EN 60335-1(PD3) and IEC/EN 61558-1,-2-16 for household appliances
- Operating altitude up to 5000 meters
- Forced air cooling bu built-in DC fan
- Withstand 5G vivration test
- LED indicator for power on
- 100% full load burn-in test
- High efficiency, long life and high reliability
- 3 years warranty
Applications:
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- Household appliances
